• PHP 8.1 or newer, with curl, openssl, xmlwriter, simplexml, dom and hash (the Braintree SDK needs these)
• HTTPS in production
• A Braintree account (the sandbox is free)

Setup

1. Get the code and the SDK

With Composer (recommended)

git clone https://github.com/veered-org/redwood-braintree-checkout.git
cd braintree-checkout
composer install --no-dev
cp config.example.php config.php

Without Composer

1. Download the latest release of braintree/braintree_php (for example the 6.x source zip).
2. Extract it so that this file exists: lib/braintree_php/lib/autoload.php. To use another location, set sdk_autoload in config.php to the full path of that autoload.php.
3. cp config.example.php config.php

2. Point the web server at public/

Only public/ should be reachable from the web. config.php, src/, vendor/ and storage/ all live outside it. If your host can only serve the repository root, the included .htaccess blocks everything outside public/ on Apache with mod_rewrite. Verify that /config.php and /storage/ return 403 or 404.

storage/ (or whatever storage_dir points to) must be writable by PHP.

3. Create a sandbox account and keys

1. Sign up at <https://sandbox.braintreegateway.com/>.
2. Open Settings (gear) → API → API Keys, then generate or view a key. Copy the Merchant ID, Public Key and Private Key into config.php.
3. Leave environment set to sandbox.
4. If you have more than one merchant account (for example one per currency), copy the Merchant Account ID from Settings → Business into merchant_account_id, and set currency to match it.

4. Enable payment methods in the control panel

Drop-in only shows a method that is enabled in both places: in config.php → payment_methods and in your Braintree gateway.

• Cards: enabled by default. Consider AVS and CVV rules under Settings → Processing → Fraud Management.
• PayPal: link a PayPal account under Settings → Processing → Payment Methods.
• Venmo: enable it in the same place (US only; limited browser support).
• Apple Pay: enable it and register and verify your domain (host the domain association file under /.well-known/).
• Google Pay: enable it. Production also needs a Google Pay merchant ID from the Google Pay & Wallet Console; put it in google_pay_merchant_id.
• Card type indicators (debit/prepaid/country BIN data) are needed for the surcharge feature. If binData comes back as Unknown, ask Braintree support to enable them.

5. Try it

Browse to your page, enter an amount and use Braintree's sandbox test card numbers (for example 4111 1111 1111 1111, any future expiry). Check the transaction in the sandbox control panel.

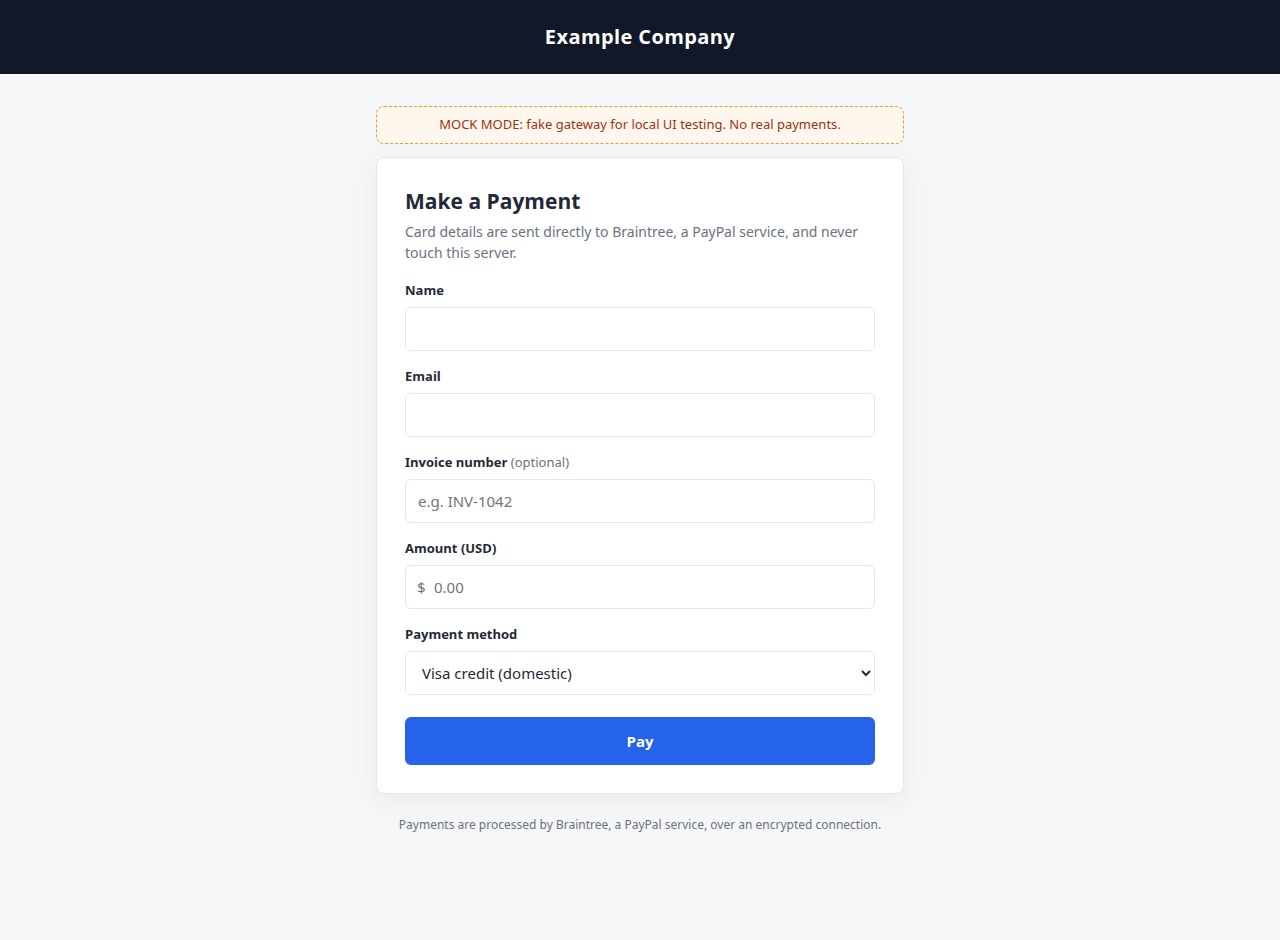

Local UI testing with the mock gateway

environment => 'mock' swaps Braintree for a fake in-process gateway. Drop-in is replaced by a select list of fake payment methods (domestic credit, domestic debit, foreign cards, PayPal, and a card that is declined). It is for local UI testing only. It refuses to run except under PHP's built-in server, or when BTCHECKOUT_ALLOW_MOCK=1 is set.

php -S 127.0.0.1:8000 -t public     # with environment => 'mock' in config.php
php tests/fees_test.php             # unit tests: money parsing and surcharge rules
tests/smoke.sh 8765                 # end-to-end curl tests against the mock, with a throwaway config

Going live checklist

• [ ] Every flow tested in sandbox: success, decline, validation errors, every wallet you enable
• [ ] Served over HTTPS with a valid certificate; require_https stays true
• [ ] Document root is public/, and config.php / storage/ are not reachable over HTTP
• [ ] config.php is not in git (git status does not show it) and is readable only by the web user (chmod 600)
• [ ] Production API keys created in the production control panel; the sandbox keys are not reused
• [ ] environment => 'production' and the production merchant_account_id / currency
• [ ] Production payment methods enabled, Apple Pay domain verified, Google Pay merchant ID set
• [ ] Fraud tools reviewed (AVS/CVV rules, Advanced Fraud Protection, and 3-D Secure if you need SCA; 3DS is not wired in by this page)
• [ ] dropin_version pinned; optional dropin_sri set (see below)
• [ ] mail.from_email on a domain whose SPF/DKIM/DMARC covers this server; one real notification received
• [ ] If the surcharge is enabled: legal review done, card-network registration and notice completed
• [ ] One small real transaction run, then refunded or voided from the control panel
• [ ] Web server or WAF rate limiting in place (see Security)

Configuration reference

All keys live in config.php. Any key you leave out falls back to config.example.php.

Drop-in version and SRI

Braintree serves Drop-in from https://js.braintreegateway.com/web/dropin/<version>/js/dropin.min.js. Pin a version, read the Drop-in changelog before you bump it, and test in sandbox. Braintree does not publish SRI hashes, so if you want Subresource Integrity, compute the hash yourself for the exact version you pinned:

curl -s https://js.braintreegateway.com/web/dropin/1.44.1/js/dropin.min.js \
  | openssl dgst -sha384 -binary | openssl base64 -A

Put sha384-<output> in dropin_sri. Drop-in loads further scripts at runtime (for example braintree-web modules and PayPal/Google SDKs), and SRI does not cover those.

Optional card surcharge

[!CAUTION] Compliance warning. This is not legal advice. Surcharging card payments is heavily regulated, and the rules change. Among other things: - Card network rules. Visa, Mastercard and others require you to register or notify the network and/or your acquirer (typically at least 30 days in advance), disclose the surcharge at the point of entry and at the point of sale, show it as a separate line on the receipt, and keep it under a cap (commonly the lower of your actual cost of acceptance and a network maximum, around 3%). Rules differ for American Express, Discover and others. - Debit and prepaid cards may not be surcharged in the United States, even when run as credit ("no surcharge on debit" rules and the Durbin amendment framework). This code never surcharges domestic debit or prepaid cards. **Foreign debit (foreign_debit) is off by default; do not turn it on without specific advice. - State and national laws. Several US states restrict or prohibit surcharges or cap them, some require specific disclosures, and other countries have their own rules (for example, the EU bans surcharges on most consumer cards). - Wallets and PayPal.** PayPal, Venmo, Apple Pay and Google Pay have their own terms. This page never surcharges them. Get advice from a lawyer and your processor before you enable this feature. You are responsible for compliance.

How it works:

1. The payer clicks Review payment. Drop-in tokenizes the payment method, and the browser shows an itemized total using binData (debit, prepaid, country of issuance). This is display only.
2. The payer clicks Confirm and pay. The form posts the nonce, the base amount and the total the payer saw.
3. The server looks the nonce up with Braintree (paymentMethodNonce()->find()) and recomputes the fee from that BIN data. A fee or total sent by the browser is never trusted. If the server's total differs from the confirmed one in either direction, nothing is charged, and the payer is asked to review again.

Rules (surcharge.*):

fee = round(amount × percent / 100) + fixed, then capped at max_percent of the amount (default cap 3%).

Security notes

• Card data never touches your server. Drop-in collects card details in Braintree-hosted iframes and returns a single-use nonce, which keeps you in the lightest PCI scope (SAQ A in most setups; confirm with your acquirer).
• Amounts are parsed strictly into integer cents and checked against min_amount/max_amount on the server. The browser's checks are only a convenience.
• CSRF. Every form render issues a token that is valid for one POST.
• Nonces are single use at Braintree. This page also refuses a nonce that was already submitted in the same session.
• Double submits and refreshes. Checkout redirects (303) to a receipt read from the session, so reloading never charges twice.
• XSS. All output is HTML-escaped, and the configuration for the front-end script is JSON-encoded with JSON_HEX_* flags.
• Email. Addresses are validated and must not contain CR/LF; names and subjects have control characters stripped; non-ASCII headers are RFC 2047 encoded. The payer's address is used only as a recipient and never as From.
• Logging. Only exception class names are logged. No request bodies, nonces or card data are logged, and this page never sees a PAN.
• Rate limiting. A simple per-IP file counter limits checkout POSTs. Also add web-server or WAF limits (for example nginx limit_req, Cloudflare rate rules) to deter card testing. Braintree's fraud tools help here too.
• Headers. frame-ancestors 'none', X-Frame-Options: DENY, nosniff, no-store, and HSTS when on HTTPS. If you add a full Content-Security-Policy, allow Braintree, PayPal and Google Pay origins as their docs describe.
• Session cookie is HttpOnly, SameSite=Lax, and Secure over HTTPS.

Email deliverability

mail() hands mail to the server's local MTA. Many shared hosts send that mail with poor reputation or misaligned SPF/DMARC, so receipts can land in spam. For reliable delivery:

• Use a from_email on your own domain, with SPF and DKIM that authorize the sending server (the -f envelope sender is set to match), or
• composer require phpmailer/phpmailer and set mail.transport => 'smtp' with an authenticated mailbox or transactional email provider, or
• Turn on Braintree's own email receipts in the control panel and set send_payer_receipt => false.
